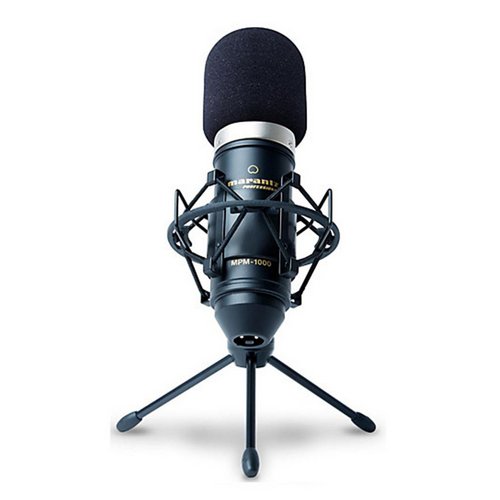

Marantz MPM 1000 Microphone

Large Diaphragm Condenser Microphone

Marantz Professional is proud to present the MPM-1000 Studio Series microphone, a high-quality condenser mic that delivers studio-grade audio performance along with unexcelled value. The MPM-1000 Studio Series microphone exemplifies Marantz Professional’s commitment to users who demand no-compromise components that fit within a realistic budget.

SPECIFICATIONS

• Element: Pure-aluminum-plated, 18mm-diameter-diaphragm condenser capsule
• Polar Pattern: Cardioid
• Frequency Response: 20–20,000Hz
• Open Circuit Sensitivity: -38 dB ±2dB (0 dB = 1 V/Pa @ 1 kHz)
• Output: 200 Ω ±30% (@ 1 kHz)
• Load: >1000 Ω
• Self-Noise: 17 dBA
• Maximum SPL: 136dB (THD ~ 1%, 1 kHz)
• Signal-to-Noise Ratio: 77dB
• Phantom Power Requirements: 9-48 VDC, 3 mA typical
• Dimensions (length x diameter): 6.5″ x 1.90″ (165 x 48 mm)
• Weight: 10.5 oz (300g)
