Pioneer DDJ-REV1 DJ Controller 2-Channel 4-Deck DJ Controller

The Pioneer DDJ-REV1 is a 2-channel, 4-deck battle-style DJ controller designed for use with the Serato DJ Lite and Serato DJ Pro Software. It features a layout that mimics a professional scratch setup of two PLX turntables and a DJM-S series mixer, making it an excellent starter controller for aspiring open-format and turntablist DJs.

Key features

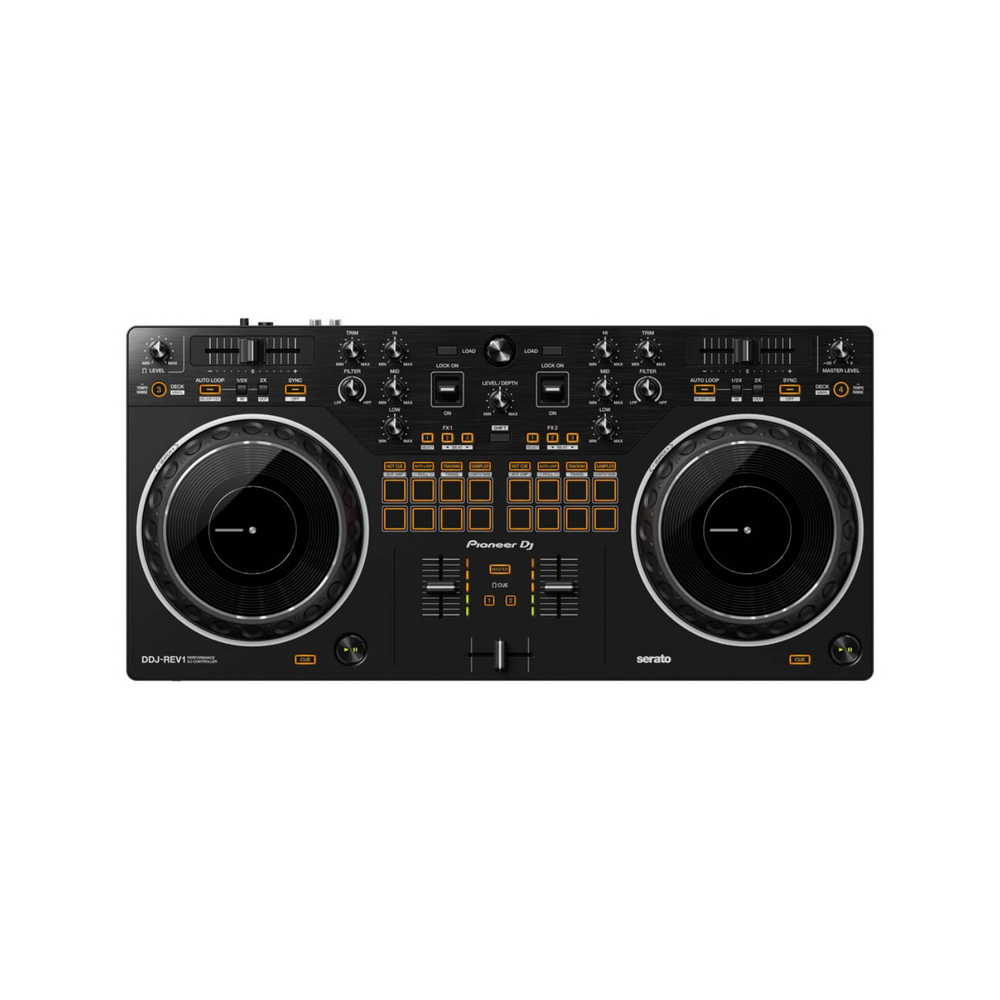

• Battle-style layout: The controller’s layout places the pitch sliders horizontally above the decks and the performance pads and effects paddles in the mixer section, providing a familiar setup for scratch DJs and turntablists.
• Large jog wheels: Bigger jog wheels (5.2″ or 154mm) compared to other entry-level controllers, which offers more precise control for scratching and beatmatching.
• Tracking Scratch: An exclusive feature for the DDJ-REV1 that automatically snaps the track back to a cue point when you move the jog wheel backward. This helps beginners practice and master scratching techniques.
• Lever FX: Includes effect paddles that are fun and easy to use. You can pull them down for a momentary effect or push them up to lock the effect on.
• Mic input: 1/4″ microphone input, and the audio is routed directly to your computer. Simplifies the setup for livestreaming and performing with vocals.
• Serato DJ compatibility: The DDJ-REV1 is unlocked for Serato DJ Lite upon connection. An upgrade to the more powerful Serato DJ Pro is available for purchase.

Specifications

• Soundcard: 24 bit/48 Khz
• Signal-to-Noise Ratio: 103dB
• Distortion < 0.005%
• Frequency Range 20-20,000 Hz
• Dimensions WxHxD = 52.6 x 5.92 x 25.55 cm
• Weight: 2.1Kg
• Power Supply: USB Tupe-B bus Powered
• Power Consumtion: 5V 500mA

Performance Control

• Channels: 2
• Deck Control: 4
• Trim Knob
• Jog Wheel (Max Dimensions): 5.5”/15.4cm
• Filter
• Sampler
• Pad Modes: Hot Cue, Auto Loop, Tracking Scratch, Sampler, Trans, Scratch Bank
• Manual Loop, Auto Loop

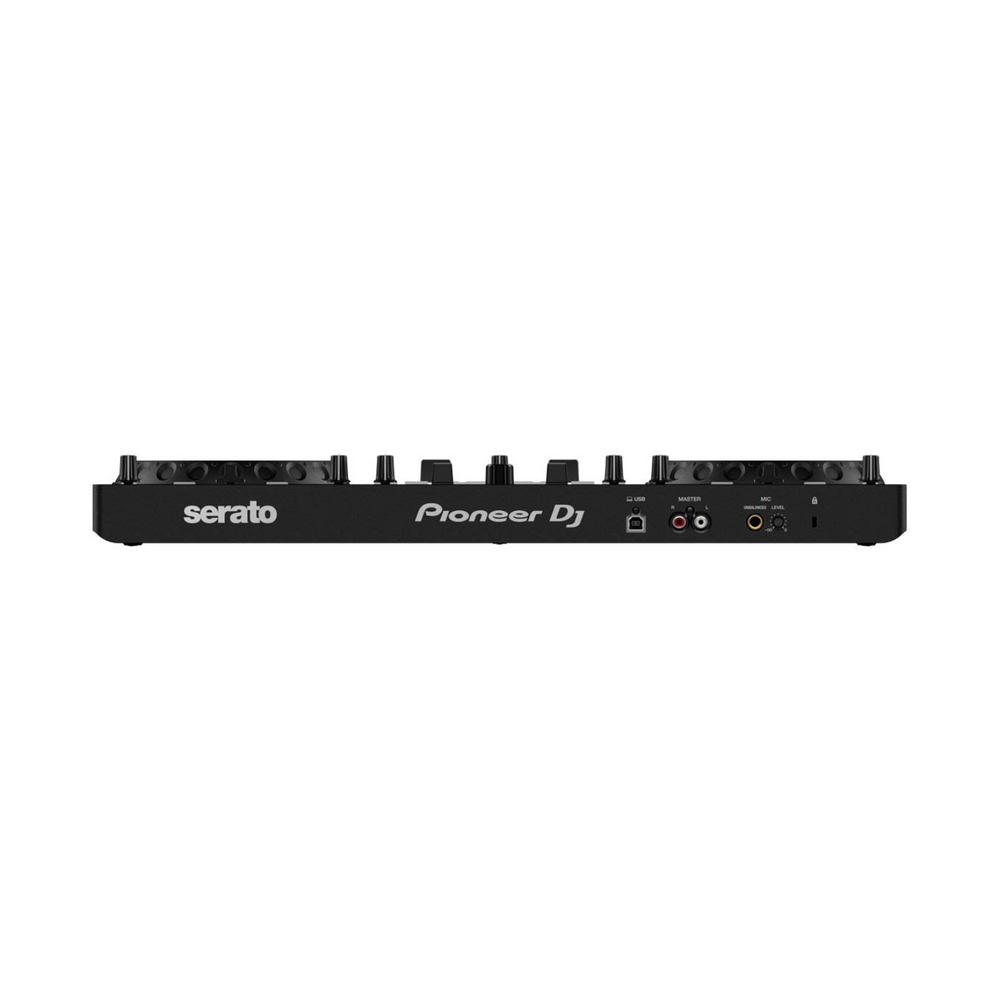

Terminals

• Inputs: 1 Mic (1/4 inch TS Jack)
• Outputs: 1 Master (RCA), 1 Phones (3.5mm Stereo Mini Jack)
• 1 USB-B Port
